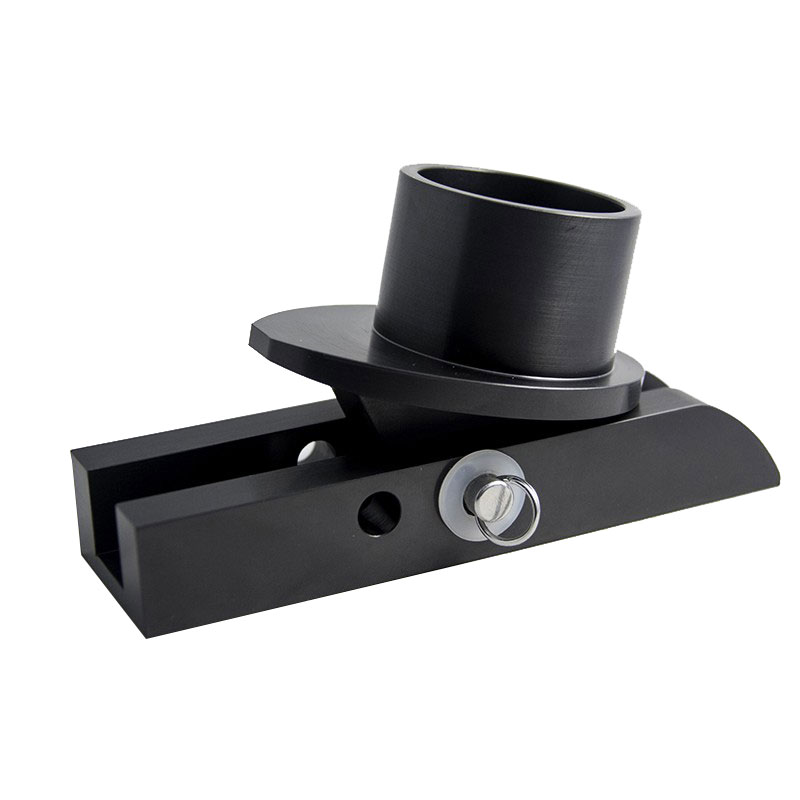

Ezi Mast Heel / Step Raking System

Manufactured from solid aluminium and anodised in Black these products are designed to work together for applications where there is considerable mast rake used on the boat, many dinghy classes use raking rig systems and conventional heel plug designs load the back of the tenon when sailing with rake, which causes compression at the back of the mast, and in some cases damage to it.

The Ezi system removes this risk as all of the load is carried through the centre pivot pin. The pivot allows for 14-15% of rake to be used, whilst removing friction in the raking system. The heel is designed to fit most common dinghy masts with the use of a collar to suit the section size.

Also sold separately

SPECIFICATIONS

MAST STEP

• Width: 40mm
• Length: 130mm
• Height: 21mm
• Channel Width: 17mm
• Pivot pin Ø: 8mm

MAST HEEL

• Width: 58mm
• Length: 78mm
• Pivot pin Ø: 8mm
